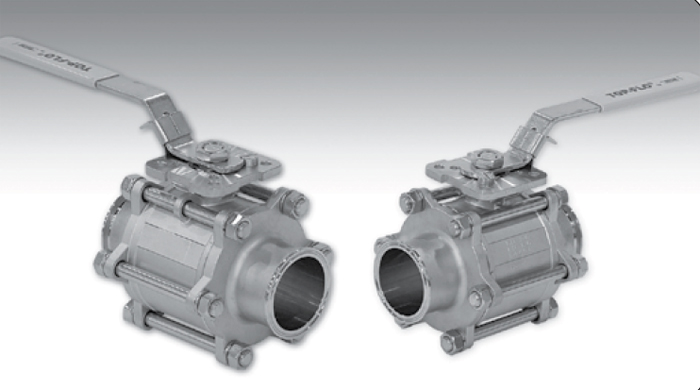

Top-Flo® Full Flow Ball Valves

Top Line’s Ball Valve is engineered to be the finest in the industry.
Each valve is built to exacting specifications and is constructed to perform flawlessly in the most  hostile environment. Top Line’s Ball Valves are utilized by firms which demand the uncompromised ability to regulate flow – from full flow open to various degrees of closure.

IMPORTANT FEATURES
• 360 Degree Installation – Valve may be installed in any position.
• Teflon cavity fillers are precision machined to maintain sanitary environment.
• Easy “In-line” servicing. Unique design allows valve ends to remain attached while servicing valve body.
• No special tools needed.
• Minimal turbulence – maximum flow through.
• USDA approved
• ISO 5211 Mounting Pad

MECHANICAL SPECIFICATIONS
• Sizes – 1/2”, 3/4”, 1”, 1-1/2”, 2”, 2-1/2”, 3” and 4″
• Materials – 316 Stainless Steel
• Teflon seating
• Connections – Clamp & Butt-weld. Other connections available upon inquiry
• Infinite number of closure positions
• Locking handle
• Pressure – 1,000 psi at 70°F sizes 1/2 – 2 – 800 psi at 70°F sizes 2-1/2 – 4
• True port
• Air & electric actuators available
• Double Teflon stem packing
